[YangMing] Chemiluminescence Imager-eBLOT
- Brand Model
- eBLOT TOUCH IMAGER Mi
- Instrument Location: Yang-Ming Campus
- Room B02, B1F. Shou-ren Building (machine O)
- Term of use: Reservation required
- Free of charge for on-campus use; please contact the center staff for off-campus use.
- Reservation >>>Instrument Reservation System
- Contact center staff：
- Extension：62382
- Email：ycirc@nycu.edu.tw

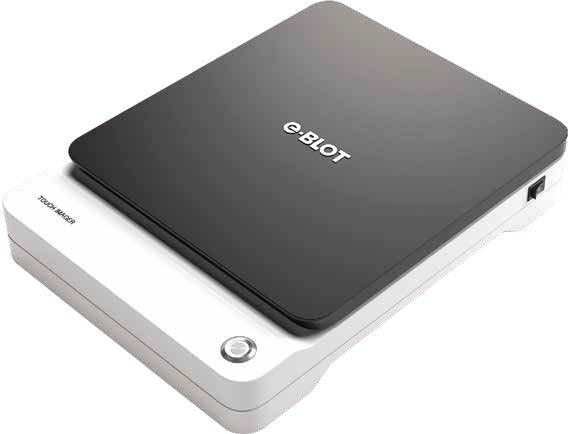

TOUCH IMAGER is a contact chemiluminescence imager, which is applied to the collection and quantitative analysis of Western Blot chemiluminescence images, and has the advantages of small size, high sensitivity and wide dynamic range.
The instrument specifications are as follows:
The instrument specifications are as follows:
- Can detect protein Western blot signal and SDS-PAGE image acquisition.
- The real size of the photosensitive chip is ≧ 14 cm x 10 cm.
- The size of the visible range of the photosensitive chip is ≧ 10 cm x 7 cm.
- Pixel size ≧ 95 um x 95 um.
- Dynamic range ≧16bit.
- Single image exposure time ranges from 0.1 to 600 seconds.
- No need for a cooling system and focusing lens.
- The distance between the sample and the photosensitive chip is ≦1 cm to reduce signal loss.
- There is a white light LED inside the upper cover of the main unit. The host body has LED indicators, distinguishing different states such as power-on, connection, and image capture.
- Shooting modes include HD mode and standard mode.
- The software has a one-key camera function, which can automatically shoot ≧8 images with different exposure times.
- The software automatically backs up images, and the file name information includes the year, month, day, hour, minute, second, and exposure time of the photo.
- The formats that can be stored include TIF and PNG, and 254, 300, 600, and 1200 dpi can be selected.
The functions of the IQTL software can be used for analysis:
- 1D electrophoresis gel quantification
- Western blot quantification
- Colony count
- Array analysis (MicroArray)
※This machine must be booked via the Instrument Reservation System
Each person can make a maximum of 1 reservation, with a limit of 0.5 or 1 hour per reservation. Please make changes as soon as possible since multiple users use this device. Failure to make a reservation or a reservation under a different name will be penalized per the regulations.
Rules of Instrument Use
Each person can make a maximum of 1 reservation, with a limit of 0.5 or 1 hour per reservation. Please make changes as soon as possible since multiple users use this device. Failure to make a reservation or a reservation under a different name will be penalized per the regulations.
Rules of Instrument Use
- Please use the matching tray and accessories correctly according to the sample type. (For samples other than WB membrane, please contact us)
- When using, do not throw the Sample to avoid contamination of the surrounding environment.
- If you find that the previous user has caused environmental contamination, please make sure to record it in the log book to avoid any misunderstanding before use.
- After use, clean and wipe the front and back of the board and the tray.
- At the end of the operation, if you are not the last user of the day, you do not need to turn off the power of the host computer, the instrument has an automatic sleep mechanism.
- Gloves are strictly prohibited; EtBr samples are also prohibited.
Instrument shutdown
The last user of the day (after 5pm) should press the On/Off button (in front of the device) to turn off the instrument after use.
The last user of the day (after 5pm) should press the On/Off button (in front of the device) to turn off the instrument after use.
- eBLOT TOUCH IMAGER Operation Manual (Chinese version)

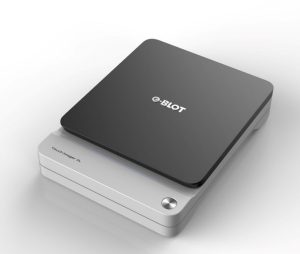

Related Image(s)：
