[YangMing] FE-SEM: JSM-7600F

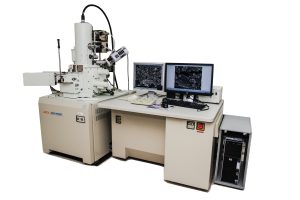

Ultra High Resolution Thermal Field Emission Scanning Electron Microscope JSM-7600F
  • Field Emission Scanning Electron Microscope
    • Brand Model: JEOL JSM-7600F
  • Instrument Location: Yang-Ming Campus
    • Room B105, 2nd Floor, Laboratory Building
  • Management unit: Prof.  Chung-Jiuan Jeng from the Institute of Anatomy and Cell Biology, NYCU
    • Extension 67072
  • Manager: The administrators of the electro-microscopy room
    • Ms. Yu Yuying (extension 65455)
    • Ms. Ho Shuli (extension 65235)
  • Term of use: Please contact Ms. Yu (ext. 65455), the administrator of the EM room.
    • For reservations, please contact the administrator of the EM room first.
  • Reservation >>> Instrument Reservation System
Introduction
  • The primary function is performing high-resolution image observation of material surfaces, which integrates ultra-high resolution imaging and analytical capability.
  • It is widely used in biology, polymers, nanomaterials, chemistry, optoelectronics, physics, metals, semiconductors, ceramics, and composite materials.
Specifications
  • Secondary electronic image resolution:
    • 1.0mm (acceleration voltage 15 KV)
    • 1.5 nm (acceleration voltage 1 KV)
  • Magnification: ×25 to ×1,000,000
  • Acceleration voltage: 0.1 to 30 KV
  • The size of the test piece chamber is 200 mm (diameter), and the test piece exchange room is 150 mm (diameter).
  • Five-axis fully computer-controlled sample carrier
    • Moving range:
      • X-axis: 70 mm
      • Y-axis: 50mm
      • Z-axis: 1.5 to 25mm
      • Tilt: -5° to 70°.
  • Personnel of the University (including Taipei Veterans General Hospital) who require using electron microscopes for research or teaching purposes and meet the following criteria may apply for the use of the electron microscopes:
    1. Have used the same type of electron microscope before, and the manager or technicians in charge of the electron microscope room have approved their operating techniques.
    2. Have experience using electron microscopes of other types, familiar with the operation after assistance, and whose skills have been approved by the manager or technician in charge of the electron microscope room.
    3. Those familiar with the electron microscope operation through training courses and whose skills are approved by the manager or technicians in charge of the electron microscope room.
  • Off-campus users who require the use of electron microscopes or related equipment must apply to the manager of the electron microscope room, depending on whether there is enough time for on-campus users.
  • The chairperson of the laboratory will be responsible for any damage caused by improper use of the equipment.
  1. Qualified users should learn the equipment setup and working environment before making online reservations.
  2. For the first time, the technicians will assist new users to avoid any operation errors and disturbances.
  3. In case of any technical difficulties when using the instruments in the future, please inform the technicians immediately and do not try to handle them yourself.
  4. Each instrument has simple operating procedures and notes. You MUST follow the guidelines to operate, and NEVER try to turn the knobs and switches that are not instructed.
  5. Please bring your own CD-ROM to save experimental data when using JEOL JSM-7600F.
  6. Please keep or clean the specimens you used, and do not leave them on the work surface to avoid being stained or discarded.
  7. After use, please notify the technicians and follow the instructions to return everything to its original position and record related matters.
  8. Users must mention "Supported by the Electron Microscopy Facility in National Yang Ming Chiao Tung University" or "This work was supported in part by the Electron Microscopy Facility in National Yang Ming Chiao Tung University" in the acknowledgment when the paper is published.
The Electron Microscope Management Committee has approved and implemented these regulations, which will also be amended.
Reservation rules
  Monday Tuesday Wednesday Thursday Friday
Morning session V V V V V
Afternoon session Operated by Technicians V V Operated by Technicians
(off-campus users)		 Operated by Technicians

V: Certified users can make online reservations for self-operation
  • Every Monday to Friday, from 8:30 am to 5:00 pm, except for the above time (for technical staff to bring new users to operate the machine), certified users are open to book for self-operation. (EDS and 3D Tomography are operated by technical staff). As a rule, each user can use it 4 hours a week.
  • If there are no off-campus reservations on Wednesday, the TEM is open for on-campus users.
  • Please go to YCIRC's Instrument Reservation System to register and make online reservations. If you have any questions, please call the school extension 65455 (Technician Ms. Yu) or 65235 (Technician Ms. Ho).
  • After making a reservation, if you cannot use it for any reason, please cancel the reservation online the day before. If you make a second consecutive reservation without using it, your rights will be suspended for two months.
  • The use of electron microscopes and other related instruments, the maintenance of required related instruments, and the consumption of materials will be shared by each user. The charging standards are as follows:
    • SEM (JEOL JSM-7600F): NT$600/hour (NT$1,200/hour for off-campus users). If the testing time is less than one hour, it will be charged as one hour. If the reservation is not canceled for any reason or the user is a no-show, they will be charged for the first hour.  Critical point drying: NT$300 each time (you need to bring your own 100% alcohol, excluding the silver glue fee)
    • Gold plating of SEM specimens: NT$580 per time (excluding silver glue fee)
    • Platinum plating of SEM specimens: NT$530 per time (excluding silver glue fee)
    • Silver glue: NT$10 for each specimen carrier.
    • SEM specimen carriers: 25 mm/NT$120 each, 12 mm/NT$60 each, 10 mm/NT$40 each.
  • If the device is damaged due to improper use, the laboratory director will be responsible.
Electron Microscopy Room Equipment
  1. JEOL JEM-1400plus transmission electron microscope
  2. JEOL JSM-7600F Ultra-high resolution thermal field-emission scanning electron microscope
  3. JFC-1200 Auto Fine Coater Plating Machine (Gold)
  4. JFC-1600 Auto Fine Coater Plating Machine (Platinum)
  5. Vacuum Evaporator (JEE-400)
  6. Tousimis PVT-3B, Tousimis PVT-3D critical point dryer
  7. Leica EM UC7 Ultramicrotome
Electron Microscopy Room Services
  1. TEM (JEOL JEM-1400plus) operation and imaging, EDS element analysis, 3D Tomography (3D image reconstruction time will be arranged separately)
  2. SEM (JEOL JSM-7600F) operation and imaging
  3. Critical point drying, platinum plating, gold plating
  4. Ultra-thin section
New user training sessions by technicians
  Monday Tuesday Wednesday Thursday Friday
Morning session JEM-1400plus
(TEM)		 JEM-1400plus
(TEM)		 JEM-1400plus
(TEM)(Off-campus users)		 JEM-1400plus
(TEM)		 JEM-1400plus
(TEM)
Afternoon session JSM-7600F
(SEM)		 CPD
(critical point drying)		 JEM-1400plus
(TEM)		 JSM-7600F
(SEM)
(off-campus users)		 JSM-7600F
(SEM)
