Biomedical Imaging

exchangealt 中文
  • Update Date：2025-02-20
  • Units：Instrumentation Resource Center
[Guangfu] Brain Function Imaging System (BFIS)
Brain function neuroimaging system
  • Brain Function Imaging System, BFIS
    • Functional near-infrared spectrometer
      • Brand & Model: NirX, NirScout
    • EEG magnifier
      • Brand & Model: Compumedics, Neuroscan NuAmp
  • Instrument Expert: Prof. Ko, Li-Wei
  • Instrument Operation Technician: Wu, Yu-Chi
  • Instrument Reservation: Yu-Chi Wu, Cheng-Hua Su
    • Ext. 54413
  • Instrument Location: Room 808, Engineering Building V

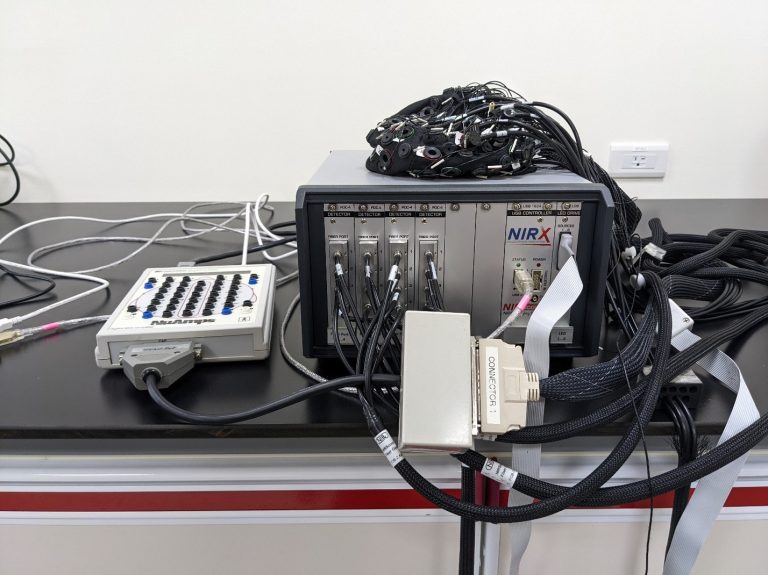

This instrument consists of a functional near-infrared spectrometer and an electroencephalogram magnifier.

Instrument brand, model, year of purchase
  • Functional near-infrared spectrometer
    • Brand: NirX
    • Model: NirScout
    • Purchase period: 2012/11/06
  • EEG magnifier
    • Label: Compumedics
    • Model: Neuroscan NuAmp
    • Purchase period: 2004/05/18
Important Specifications
  • Functional near-infrared spectrometer
    • Source　　　　　　　　　　NSC 8*16 / 8*8 LED sources
    • Source Wavelengths　  　　760nm & 850nm
    • Detection Sensor　　　　　Silicon Photodiode (SiPD)
    • Detector Sensitivity　　　　< 1 pW
    • Sampling Rate　　　　　　 2.5 – 100 Hz
    • Temperature Range　　　　10 – 40 C (operating)
  • EEG magnifier
    • Analog inputs　　　  　　　40 unipolar (bipolar derivations can be computed)
    • Sampling frequencies　　　125, 250, 500, 1000 Hz per channel, software selectable for all channels
    • A/D　　　　　　　　　　　 resolution22 bits
    • Full-scale input range　　　±130 mV
    • Interface　　　　　　　　　Universal Serial Bus (USB),
　　 　　 　　 　　 　　 　　
Services
Item     Service Content     Related Fields
Near-infrared brain activity measurement         To measure and analyze subjects' brain activity in static experiments with near-infrared devices     Neuroscience, Cognitive Science, Psychology
EEG brain activity measurement     To measure and analyze subjects' brain activity in a static experiment with an EEG imaging device Neuroscience, Cognitive Science

Opening hours: Monday to Friday, 9:30-18:00
System open level
  1. General working hours: Level A
  2. Night and holiday period: not open

System Level Description
  • Level A: Open to students who need to use it. They can operate it on their own after training and assessment.
  • Level B: Each professor nominates one student for training, while the rest operate under those who have been trained. Professors with multiple students using the instrument can request an increase in the number of students receiving training.
  • Level C: The instrument administrator selects several students recommended by the professor to receive training. After passing the assessment, they can self-operate the instrument and be responsible for delegated operation service.
  • Level D: The laboratory's technical staff only accept delegated services and are unavailable for general use.
　　 　　 　　 　　 　　 　　
Charges
Self-operation     Academic Units
(Universities and Colleges)    		 Industry and other research units
Near-infrared brain activity measurement NT$500/hour NT$500/hour
Observation of brain activity of limb movement NT$500/hour NT$500/hour
Instrument Usage Regulations:
  1. this equipment can only be used after reservation and confirmation with the instrument operating technician one week in advance.
  2. Each time the system is used, it should be confirmed whether the instrument system is normal. After use, users must sign on to the use record log. If there are any issues, the instrument administrator should be notified immediately to avoid disputes over usage and clarify responsibility.
  3. Users are responsible for restoring the instrument and turning off the power after use, and can leave only after confirmation by the management staff.
  4. For those who violate the above norms and still cooperate after verbal warnings, the administrator may suspend the use of the employee according to the circumstances.
Instrument operation Reservation
Instrument List of Guangfu and Boai Campus Biomedical Imaging
