[YangMing] Freeze Dryer
- Freeze Dryer

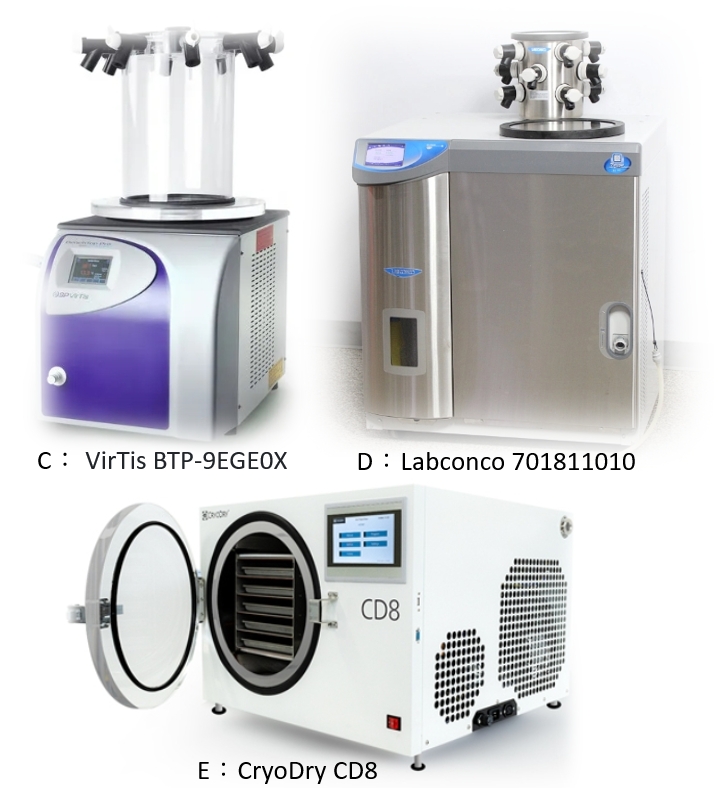

- Brand/Model:
- VirTis BTP-9EGE0X: C machine
- Labconco 701811010: D machine
- CryoDry CD8: E machine
- Instrument Location: Yang-Ming Campus
- Room 465-2, 4th floor, Biomedical Engineering Building (D), (E)
- Room 710, 7th floor, Biomedical Building (C)
- Term of use:
- Free of charge for NYCU users. Off-campus users, please contact the center before use.
- Reservation >>> Please see the reservation rules for details. For first time users, please contact the center staff.
- Contact Us:
- Extension: 62382
- E-mail: ycirc@nycu.edu.tw
1.
The principle is to use the sublimation process. Freeze drying is a process whereby water or other solvent is removed from frozen material by converting the frozen water directly into vapor without the intermediate formation of liquid water. When the sample is freeze-dried, the size, shape, and composition are unchanged, and the cell nutrients and activity in the original sample can also be retained.
The Continuous Series of Process:
- Pre-freezing: freeze to below the freezing point
- Primary drying (sublimation reaction): maintain a low-pressure vacuum condition
- Secondary drying (heat drying): warm to remove residual moisture
2.
It can be used for long-term storage of microbial cultures, enzymes, blood, specimens, medicines, and space food. Solid products can also be chemically analyzed because they are more stable than liquids.
- Pharmaceutical:
- Drug screening
- Long-term preservation
- Shelf life
- Food department:
- Analytical additives
- Preservative
- Vegetable and fruit genetic engineering
- Medicine:
- Burn dressing
- Analysis organization and preservation
- Zoology:
- Identify stress, fertility, nutrition
- Concentrated sedatives for ease of dosing
- Clinical:
- Analysis of blood (plasma) and urine samples for metabolism studies
- Blood cells, cord blood
- Preparation of sputum samples
- Environmental:
- Analysis of water and soil samples for long-term storage
- Detect air pollution
- Genetics:
- Replication and abnormal analysis in animals and humans
- DNA sequencing
- Proteomics Proteomics:
- Protects heat-sensitive proteins
- There are currently three freeze dryers and the opening hours are as follows:
-
Opening Hours and Rules Location Model Outer / Inner slot Scheduled on/off time Room 465-2,
4F. Biomedical Engineering BuildingD Available with outer slots only, which can be placed at any time Every Thursday 8:30 am (OFF) - 11:30 am (ON) E Only available for inner slot* use, required online reservation before use Self-operation after reservation.
For first-time users, please contact our staff.Room 710,
7F. Biomedical BuildingC - The outer slot is available for direct use
- The inner slot* requires a reservation on the log book and is available with a scheduled on/off time.
- Each time the inner slot is reserved, the maximum capacity is 1/2 of the tank volume. Please use the outer slots if the capacity is less than 1/4, and the scheduled switch time must be matched.
Every Monday and Thursday, 8:30 am (OFF) - 15:30 pm (ON)
-
- If no one is using it, users can switch it on and off by themselves. If you are unfamiliar with the switching process, contact the central office.
【Note】
- Freeze-dry bottles can be brought by yourself or borrowed from the center in advance.
- Make sure that the freeze-dry bottle you prepare can be tightly sealed with the valve of the freeze-dryer and that there is no air leakage.
- The freeze-dry bottle is expensive, please use it carefully. You must compensate for a new freeze-dried bottle (brand only VirTis or Labconco) if damaged.
- It is strictly forbidden to use【Isotope】and organic solvents.
- C Machine: Labconco Freeze Dryer User's Manual
- D Machine: VirTis Freeze Dryer Manual
- E Machine: CryoDry CD8 Manual (CH)
