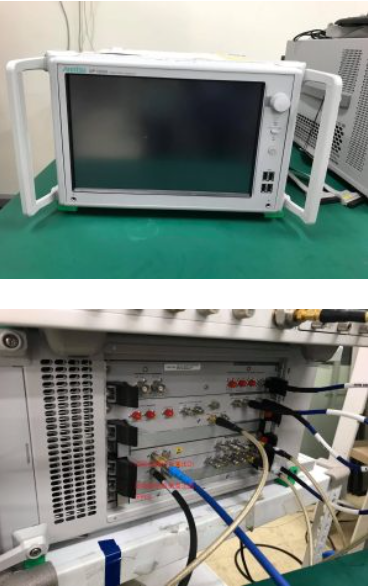

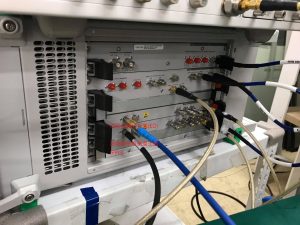

[光復校區] 高速脈衝圖形產生器 PAM4 PPG

Pulse Pattern Generator, PAM4 PPG
- 廠牌：安立知股份有限公司
- 型號：MU196020A
儀器專家：陳巍仁教授
- 分機 31976
儀器操作技術員：劉曜嘉同學
- 分機 54215
- 信箱 yaochia181@gmail.com
儀器位置：工程四館 626室

儀器廠牌、型號、購置年限
廠牌：安立知股份有限公司
型號：MU196020A
購置年限：2020年9月

重要規格

High-Quality Waveforms, and High-Sensitivity Input: Higher Measurement Efficiency with World-Leading Highest Level Waveform Signal Quality
- High-speed Tr/Tf of 8.5 ps (20 to 80%)
- Low Intrinsic Jitter of 170 fs (rms)
- Low noise and low distortion high-quality data output
- High Rx performance due to 23-mV input sensitivity, and analog bandwidth of >40 GHz
- Stressed Margin BER of <1E-12
High Transmission Capacity and Excellent Expandability: Futureproof Multichannel Expansion for 800G R&D
- All-in-one support for 512 Gbit/s max. transmission capacity
- Multichannel expandability 4ch PAM4/NRZ
- 8 slots for module addition
- Jitter and noise module expandability
- Operation baud rates of 2.4 Gbaud to 58.2 Gbaud
World-First All-in-One PAM4 BER Test Solution: Easy Configuration and Operation without Other External Equipment
- Supports Emphasis variable dynamic range (±20 dB) and ISI simulation
- 4-level linearity control
- Built -in Clock Recovery
- Jitter and Noise Stress addition
- PAM4 pattern editor and symbol error measurement
- Forward Error Correction(FEC) pattern generation
- Jitter Tolerance measurement using DUT BER counter function
Specification Summary
- Baud-rate: 2.4 Gbaud to 58.2 Gbaud (upper limit as option selections)
- Output amplitude: 0.14 Vp-p to 1.6 Vp-p (Differential)
- Emphasis: 4 Tap, ±20 dB (1 post/2 pre cursor), ISI/Channel Emulator
- Intrinsic jitter(rms): 170 fs (typ., NRZ)
- Tr/Tf (20-80%) : 8.5 ps (typ., NRZ)
- Multichannel synchronization
- FEC pattern generation
